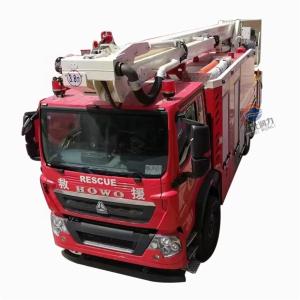

32 meters lift jet fire truck
| 32m High Lift Jet Fire Truck | |
| Vehicle Basic Parameters | |
| Water Tank | 7000 liters |
| Chassis brand & Year | SINOTRUK HOWO, 2018 new |
| Wheel Drive | 6x4,LHD |
| Overall Dimension | 10550x2550x3750mm |
| Gross Weight | 33800kg |
| Curb Weight | 24300kg |
| Load capacity | 12020kg |
| Engine | SINOTRUK WD615.38,380HP 6-cyl 9726cc Turbocharged Intercooled |
| Fuel Type | Diesel |
| Wheelbase | 4600+1400mm |
| Tires: | 10+1, 295/80R22.5 |
| Cabin | Double cab, 2+4 seats |
| Transmission | Manual, 10 front gears and 2 rear gear |
| Brake | Full air brake |
| Max Speed | 90km/h |
| High Lift Arm Jetting System | |
| Arm lifting height | 32meters |
| Type | Hydraulic 2 section arm |
| Nozzle | High pressure water jet nozzle |
| Other | With camera |
| Pump | |
| Model | CB10/100 |
| Flow | 100L/s |
| Pressure | 1.0MPa |
| Water diversion time | <80s |
| Water suction depth | 7m |
| Water Tank | |
| Volume | 7000 liters |
| Material | stainless steel304 |
| Manhole | One unit |
| Flow valve | One unit |
| Fire Monitor(shooting nozzle) | |
| Model | PS50 water jet nozzle |
| Pressure pump | 1.0MPa |
| Flow | 64L/s |
| Range | >75m |
| Rotation angle | 355 horizontal |
| Other Config. | |
| Fire pump compartment | One unit, with three sets aluminum shutter doors |
| Fire tool compartment | 2sets, aluminum shutter doors |
| Fire tool | 21 sets |
| Lighting light | One unit, at rear top of truck |
| Side warning light | 8pcs |
| Spare tire | One unit |
| Water suction hose | 2 pcs, 6m long ruber hose per pcs |
| Ladder | One set |
| User manual | One pcs |
| Reflective stickers | Factory standard |
| Logo painting & Color | Customzied |
